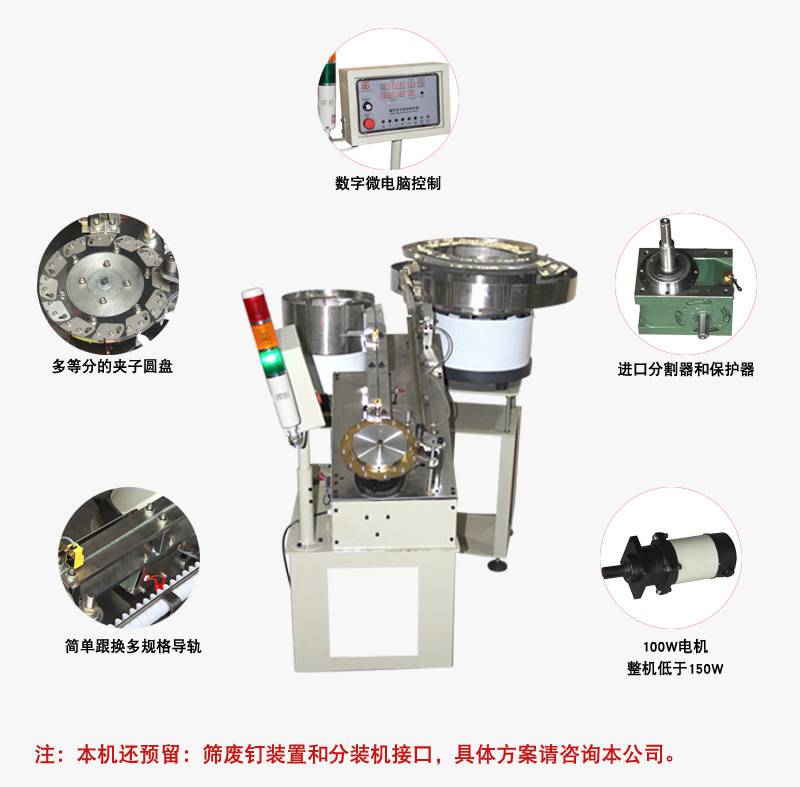

***高速鋼釘線卡自動插釘機詳細介紹

鋼釘線卡自動敲釘機說明:

1、本機是為***生產鋼釘塑料線卡工廠而精心設計的全自動鋼釘線卡敲打機。微電腦控制,自動上釘、料;無釘、
料、自動停機、聲控報警;有釘、料自動運行,無需人工開關操作,全智能化控制。鋼釘用夾手送入塑料卡進行上
釘,卡釘自動保護,人性化設計;
1, This automatic cable clip assembly machine is specially design for the factory which produces nail &
plastic clip .  Microcomputer control,  automatic nail,  materials; If there  are  not nails  or materials,  it
will automatically stop, sonic alarm;If there are enough nails, material,it will  stort openating.  It doesn39;t
need manual switch operation. Complete inbligent control.  Wth help of  clip hand,    the steel nails into
the plastic card clip  let  the  nail  on,   blocking   nail  automatic protection, humanized design.
2、本機不占空間。數字化界面,操作簡易,使用LED顯示屏。
2.   the machine does not occupy a space. Digital interface, easy operation, use the LED displayer.
3、采用***計數光電,具有高分辨能力,***檢示器、***、高標準、不產生錯誤。保證計數精度0-0.1%。
3.  Adopt of Patent  count photoelectric, with high resolution ability, for the unique inspection and
implement, high precision and standard,do not produce errors. Ensure that count precision 0-0.1%
4、鋼釘、塑料卡、料軌送料,采用***變頻技術。調整送料快慢,采用軟開關輸入數字量保持、繼存。穩定、可靠;
4.  Steel nails, plastic card, material feeding rail,adopt of excellent frequency conversion technology.  For
adjusting the feeding speed,the machine use soft switch to b the digital quantity maintain and deposit.
5、本機預置擴展工程接口:分裝機、包裝機;
5. This machine is preset extension engineering interface: racking machine and  packing  machine,
6、操作人員多機操作。
6.   multi machine operation
使用產品范圍/Range of product applicant
主要用于鋼釘線卡自動組裝釘子,可做規格3mm-50mm,方圓皆可。
Mainly for cable clip to be automatic assembly nails,avaliable for circle and square clip from size 3mm to
50mm

技術指標/Technique index
機械速度/Operate speed:250-450/pcs per min            電源效率/Power efficiency:交流/AC  220 V
頻率/Frequency　50 HZ     功率/Power   0.1 KW             重量/Weight:250(kg)
體積　800(長)600(寬)450(高) volume :800mm (long) 600 mm(wide) 450 mm (high)

智能  穩定  ***  節能  高速  噪音低
Smart stable and durable energy-saving high-speed and low noise
