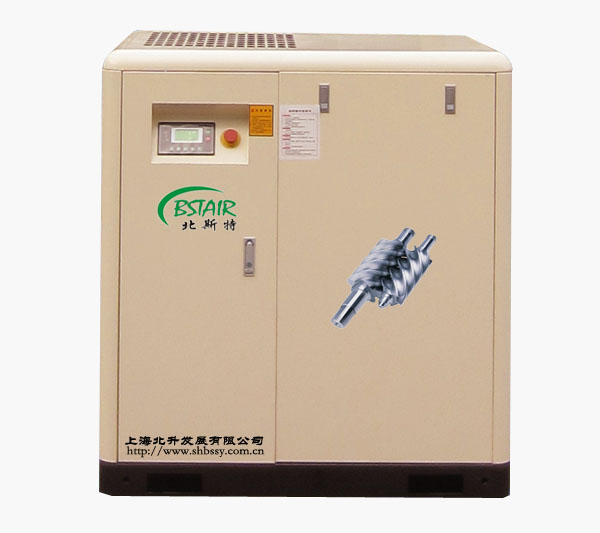

22KW BST-30SA螺桿空壓機參數表 |
||||||||||||
|
項目 |
單位 |
參數 |
||||||||||
|
公稱容積流量/額定排氣壓力 |
（m3/min）/ Mpa |
3.8/0.7 |
||||||||||
|
3.5/0.8 |
||||||||||||
|
3.2/1.0 |
||||||||||||
|
2.7/1.3 |
||||||||||||
|
電動機 |
功率 |
KW |
22 |
|||||||||
|
轉速 |
rpm |
2940 |
||||||||||
|
起動方式 |
|
Y-△ |
||||||||||
|
電壓/頻率 |
V/Hz |
380/50 |
||||||||||
|
防護等級/絕緣等級 |
|
IP54/F |
||||||||||
|
傳動方式 |
|
皮帶/聯軸器 |
||||||||||
|
冷卻方式 |
|
風冷/水冷 |
||||||||||
|
冷卻水量（水冷式） |
L/min |
16 |
||||||||||
|
氣量調節方式 |
|
ON-OFF自動調節 |
||||||||||
|
氣體含油量 |
ppm |
≤3 |
||||||||||
|
噪音 |
dB(A) |
72 |
||||||||||
|
外形尺寸（皮帶傳動） |
mm |
1200x850x1300
|
||||||||||
|
外形尺寸（聯軸器傳動） |
mm |
1200x850x1300
|
||||||||||
|
重量 |
kg |
640 |
||||||||||
|
出口管徑 |
1” |
|||||||||||
|
相關參數 |
||||||||||||
|
螺桿空氣壓縮機參數 |
||||||||||||
|
型號 |
功率 |
容積流量/排氣壓力 |
管徑 |
外形尺寸 |
重量 |
|||||||
|
Model |
KW |
HP |
m3/min/Mpa |
caliber |
L*W*H(mm) |
Kg |
||||||
|
BST-10SA |
7.5 |
10 |
1.1/0.7 |
1.0/0.8 |
0.85/1.0 |
0.7/1.25 |
3/4" |
800*640*820 |
410 |
|||
|
BST-15SA |
11 |
15 |
1.7/0.7 |
1.6/0.8 |
1.4/1.0 |
1.2/1.25 |
1" |
1150*700*1180 |
475 |
|||
|
BST-20SA |
15 |
20 |
2.4/0.7 |
2.2/0.8 |
2.1/1.0 |
1.7/1.25 |
1" |
1150*700*1180 |
560 |
|||
|
BST-25SA |
18.5 |
25 |
3.1/0.7 |
2.9/0.8 |
2.7/1.0 |
2.2/1.25 |
1" |
1200*850*1300 |
640 |
|||
|
BST-30SA |
22 |
30 |
3.8/0.7 |
3.5/0.8 |
3.2/1.0 |
2.7/1.25 |
1" |
1200*850*1300 |
640 |
|||
|
BST-40SA |
30 |
40 |
5.2/0.7 |
5.0/0.8 |
4.3/1.0 |
3.7/1.25 |
11/4" |
1350*950*1600 |
900 |
|||
|
BST-50SA |
37 |
50 |
6.4/0.7 |
6.0/0.8 |
5.5/1.0 |
4.8/1.25 |
11/4" |
1350*950*1600 |
980 |
|||
|
BST-60SA |
45 |
60 |
8.0/0.7 |
7.7/0.8 |
7.0/1.0 |
5.8/1.25 |
11/4" |
1350*950*1600 |
1050 |
|||
|
BST-75SA |
55 |
75 |
10.5/0.7 |
9.8/0.8 |
8.7/1.0 |
7.5/1.25 |
2" |
1950*1320*157 |
1250 |
|||
|
BS-100SA |
75 |
100 |
13.6/0.7 |
13.0/0.8 |
11.6/1.0 |
10.0/1.25 |
2" |
1950*1320*1570 |
1850 |
|||
|
BST-120SA |
90 |
120 |
16.0/0.7 |
15.5/0.8 |
14.0/1.0 |
11.5/1.25 |
2" |
2100*1320*1700 |
2100 |
|||
|
BST-150SAL |
110 |
150 |
20.8/0.7 |
19.5/0.8 |
17.5/1.0 |
15.8/1.25 |
DN65 |
2500*1450*1900 |
2580 |
|||
|
BST-175SAL |
132 |
175 |
24.0/0.7 |
23.0/0.8 |
20.0/1.0 |
18.5/1.25 |
DN65 |
2350*1450*1750 |
2750 |
|||
|
BST-200SAL |
160 |
200 |
27.7/0.7 |
26.5/0.8 |
22.5/1.0 |
20.1/1.25 |
DN65 |
2650*1550*1900 |
3200 |
|||
|
BST-250SAL |
185 |
250 |
32.5/0.7 |
31.0/0.8 |
26.0/1.0 |
25.1/1.25 |
DN80 |
2650*1550*1900 |
3700 |
|||
|
BST-270SAL |
200 |
270 |
34.0/0.7 |
32.0/0.8 |
28.0/1.0 |
26.0/1.25 |
DN80 |
2650*1550*1900 |
4000 |
|||
|
BST-300SAL |
220 |
300 |
36.6/0.7 |
34.5/0.8 |
31.0/1.0 |
28.5/1.25 |
DN100 |
3150*1800*2020 |
4250 |
|||
|
BST-330SAL |
250 |
330 |
43.0/0.7 |
40.0/0.8 |
37.0/1.0 |
33.0/1.25 |
DN100 |
3150*1800*2020 |
4800 |
|||
