Product Application

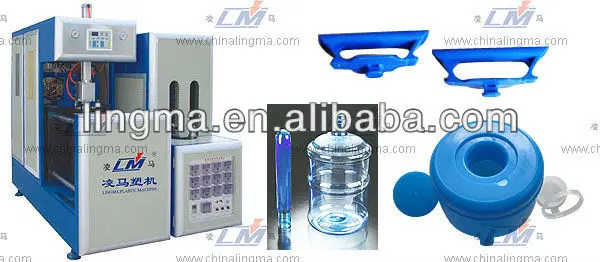

Semi-Automatic PET Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
|
Specifications For QCL-12V
|
|
|
Force of closing mould
|
220KN
|
|
Productive capacity
|
80~110Pcs/H
|
|
Max. volume
|
20L
|
|
Working air pressure of main machine
|
1.0Mpa
|
|
Blowing air pressure
|
2.0~3.0Mpa
|
|
Heating power
|
12KW
|
|
Max. stretch length
|
550mm
|
|
Max. mould thickness
|
350mm
|
|
Allowed mould thickness
|
280~440mm
|
|
Allowed mould b
|
450mm
|
|
Size of main machine
|
2100*740*2000mm
|
|
Size of oven
|
2100*650*1660mm
|
|
Weight
|
1120+620KG
|
|
Voltage
|
380/220/110
|
|
A. Professional production of PET bottle blow molding machine.
B. Direct manufacturers. C. OEM&ODM available. D. The punctual delivery of goods, quality and quantity guaranteed. |
1. More than 20 years’ professional experience in plastic machine industry.
2. Fast delivery: Reply the mail and take b in 24 hour. Strict quality control system and after-sales service. 1 year warranty .During warranty, we provide free of charge for repairing cost. Lifetime maintenance. After-sales department can provide life time maintenance service.
3. Our price is competitive factory price.
4. Our products are sold to South America/North America/Mid-east etc.
5. We have our own design department and can OEM as your requirement.We can help you to design the product line , workshop and provide turn-key project.
6. We will offer our technician for overseas bottle making machine installation and training service.
We can also provide our Sales as translator to your site help the installation and Training.
Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.
|
FESTO blowing and pneumatic system
|
|
|
Nice clamping system
|
|
|
Good heating system
|
|
|
Fantastic safety system
|
Different system
1.blowing and Pneumatic system: Simple operation and high control precision, bottle blow unit is equipped with specially designed PLC controlsystem. It controls the whole bottle production process through a soft touch pad with time control precision up to 0.01 second; Pneumatic unit provides power for machine movements including machine driving and bottle blowing. QCL-12 series is equipped with world famous brand components (Festo or SMC) to reduce the noise, save energy and produce the high quality bottles.
2.Clamping system:this adopts three-plate toggle clamping system to provide powerful clamping force required by high pressure blowing up to 35 bars. Besides, the system has an adjustment device to change the distance between front & middle mold-plate and the b of stretch-seal cylinder required in different mold installation
3.Heating system:QCL series preb heater adopts infrared lamp as heating unit. Infrared has powerful thermal-radiation capacity, which can heat up preb to required temperature in a very short time, while the strong thermal-penetrability provides continuous and unib heating inside of preb and on surface of the preb, and also adopts independent temperature control unit for each heating zone to offer ideal temperature for various preb. Each heating lamp has a voltage regulator to control the voltage of the heating lamps and keep it working smoothly. With the LED display, it becomes easy and convenient to inspect and adjust the voltage value.
4.Safety system: In order to keep both machine and operator safe, this machine installs twin startup switches on two sides of the machine, which should be pressed at the same time to start the machine, while there is also an emergency stop button on the machine to stop machine urgently if necessary
A. Professional production of PET bottle blow molding machine.
B. Direct manufacturers.
C. OEM&ODM available.
D. The punctual delivery of goods, quality and quantity guaranteed.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
